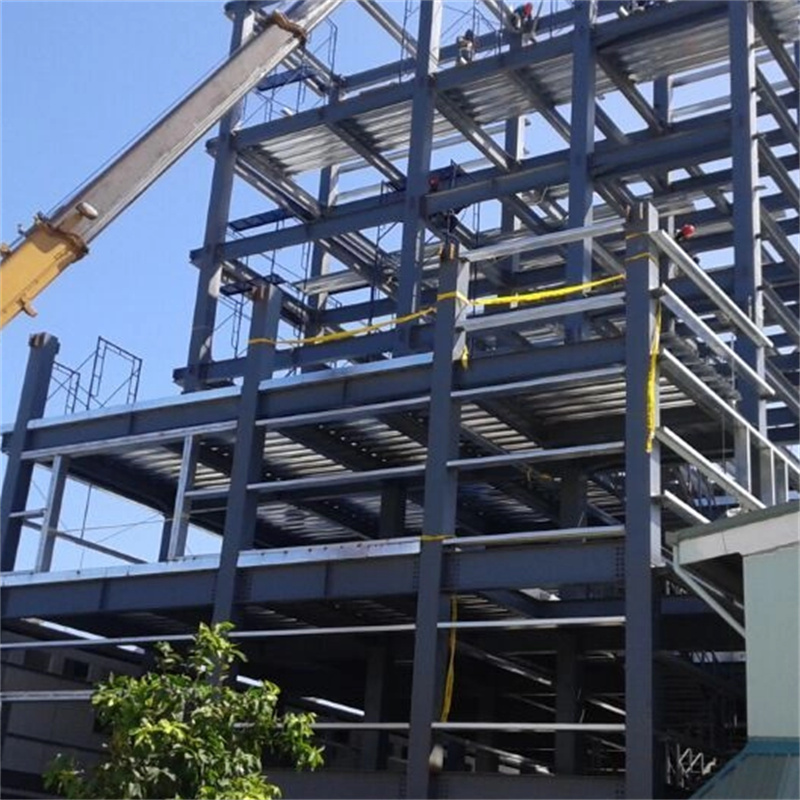

Multi-Story Steel Structure Building
The building structure system is formed by the main framework through linking up the H section, C section, Z section or U section steel components. Cladding system uses different kinds of panels as wall and roof together with other components such as windows and doors.
Feature
1. Light weight, high strength, 50years durable use, no construction waste.
2. Quality certification ISO: 9001: 2008
3. Cost considering: Time saved, cost saved;
4. Easy move, materials can be recycled used, environmentally;
5. Used widely, used as factory, warehouse, office building, aircraft hangar etc;
6. Structural durabilities, easy maintenance.
| Main steel frame | H-section steel | Q345 steel 8mm to 10mm |
| Welding | Automatic Submerged Arc Welding | |
| Rust removing | Sand blasting | |
| surface processing | Alkyd Paint or galvanized | |
| High strength bolt | Grade 10.9 | |
| Supporting system | Angle brace | L50x4,Steel Q235,Process and painting |
| Cross bracing | dia.20 round bar,Steel Q235, process and painting | |
| Tie bar | dia.89*3 round pipe,Steel Q235 Process and painting | |
| Batter brace | dia.12 round bar,Steel Q235 process and painting | |
| Ordinary bolt | Galvanized bolt | |
| Roof | Purlin | C160*60*2.5,steel Q235,Painting or galvanized |
| Out-roof panel | Sandwich panel or corrugated steel plate | |
| Transparent skylight | 6mm thick PVC | |
| Accessories | Sealant,self-tapping screw, etc. | |
| Edge cover | Made of color steel sheet thickness 0.5mm | |
| Gutter | Made of steel sheet thickness 0.8mm, or PVC | |
| Rinspout | dia.110 PVC | |
| Wall | Purlin | C160*60*2.5,steel Q235,paint |
| Wall panel | Sandwich panel or corrugated steel plate | |
| Accessories | Sealant,self-tapping screw etc | |
| Edge cover | Made of color steel sheet thickness 0.5mm | |
| Ventilator | unpowered axial-flow ventilator or monitor roof | |
| Door window | Rolling door/sliding door, PVC/alu. alloy window | |
| Crane | With or without crane, ranging from 5 tons to 20 tons |
| Our Design & Engineering Services for the Steel building ( made of steel frame ) : |
| 1 ) Experienced and skilled team of designers including CAD designers and 3D designers has the capacity to deliver outstanding designs for your project . |
| 2 ) Simple design service is free of charge to all clients to ensure customer . |
| If you require more complex engineering of structures such as load baring capacities we can also provide this service requiring designer fee . |
| 3 ) We look forward to delivering exceptional designs and advice for your project . |
| Installation supervision and after-sales service : |
| If needed , we will dispatch our professional workers to conduct assembling guide or technical support for you on site . |
