Steel Profile H Beam Strong Steel Structure Building

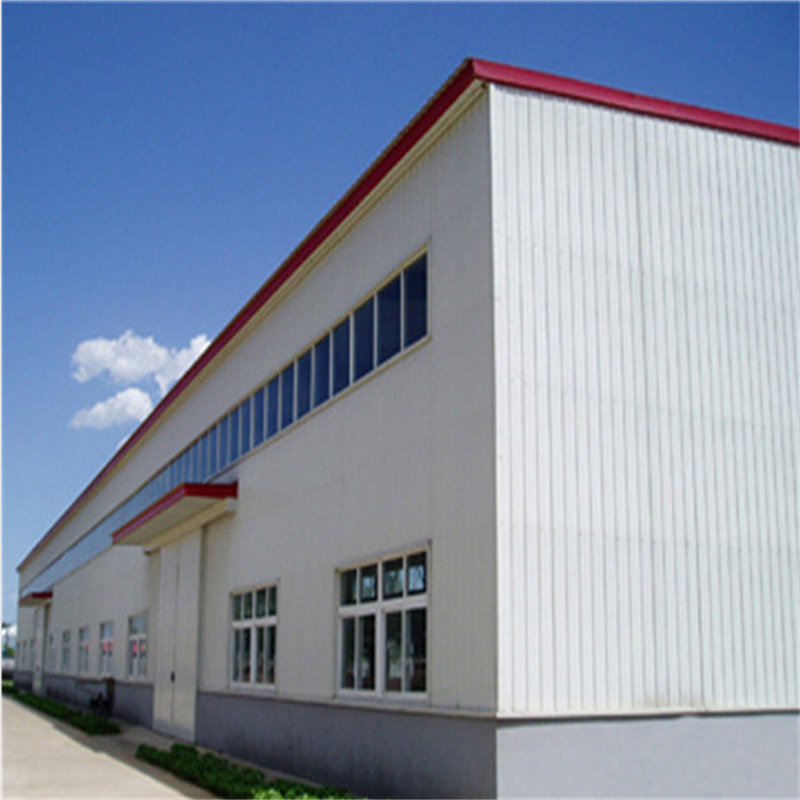

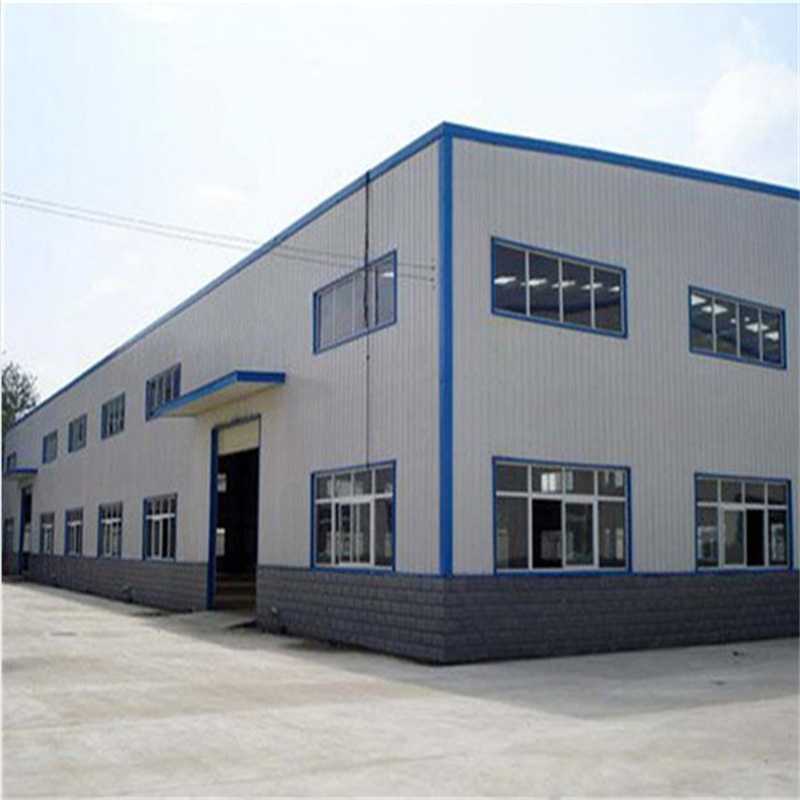

The steel workshop warehouse building is widely used for workshop plant, warehouse, office building, steel shed, aircraft hangar etc.
Feature
1. Light weight, high strength, 50years durable use, no construction waste.
2. Quality certification ISO: 9001: 2008
3. Cost considering: Time saved, cost saved;
4. Easy move, materials can be recycled used, environmentally;
5. Used widely, used as factory, warehouse, office building, aircraft hangar etc;
6. Structural durabilities, easy maintenance.
| Main steel structure (columns and beams) | 1.Steel Q345(S355JR) or Q235(S235JR)H shape 2. Straight cross-section or Variable cross-section |
| Sub steel structure | 1.Material Q235(S235JR) steel |
| 2.Bolt connections. Anti-rust painted or galvanized | |
| 3. Bracing:X-type or V-type or other type bracing made from angle, round pipe, etc | |
| 4. Purlin:C or Z type: Size from C80~C320, Z120~Z300 | |
| Roof | Sandwich panel(PU/EPS/fiberglass/rook wool) or Colorful steel tile |
| Wall | Sandwich panel(PU/EPS/fiberglass/rook wool) or Colorful steel tile |
| Doors | Steel rolling shutter or others |
| Windows | Alu. Alloy window,or others |
| Edge Cover | Steel sheet 0.5mm thickness |
| Bolts | M24,M22,M16 embedded bolts,intensive bolts,galvanized ordinary bolts,high-strength bolts, etc |
| Others options | Skylight panel,Roof ventilator,Down pipe,Galvanized,Crane,sanitary Products |
| Foundation | Cement and steel foundation bolts |
1.What is the wind speed the steel structure you designed to withstand?
We usually quote the wind load based on 100 ~110 km/h. We can also design for some countries and regions where the wind load is greater than this.
2. I need a steel structure warehouse but I only have the floor area info. Can you help us design it?
We can design according to your floor area and functional uses, and recommend suitable materials according to his budget.
3. How high are your warehouses usually?
The common warehouse we design is around 6m~8m, mainly based on considerations of building structure and economic benefits.
4. We want to ship the anchor bolt in advance, can you arrange it?
We can send the anchor bolts to your container loading place in advance around Foshan/ Guangzhou/ Shenzhen to ship your other goods.
5. For a multi-story building, if the floor plate is made of steel floordeck with rebar and concrete, how thick should the concrete will be?
We usually use 880mm type floor decking, and the thickness of the floor concrete is gen-erally 100~ 150mm.
